Specialized Thermal Solution for LED Manufacturers and Integrators The 70W ZT Series LED Heat Sink is engineered for OEMs, electrical engineers, and system integrators focusing on high-power LED lighting solutions. This product addresses critical thermal management challenges by providing stable and efficient heat dissipation essential to maintaining LED performance and longevity. Designed to integrate seamlessly with various LED module configurations, this heat sink supports compact system architectures where thermal control is a decisive factor for reliability. Its targeted design ensures effective cooling in demanding industrial and commercial LED lighting environments.

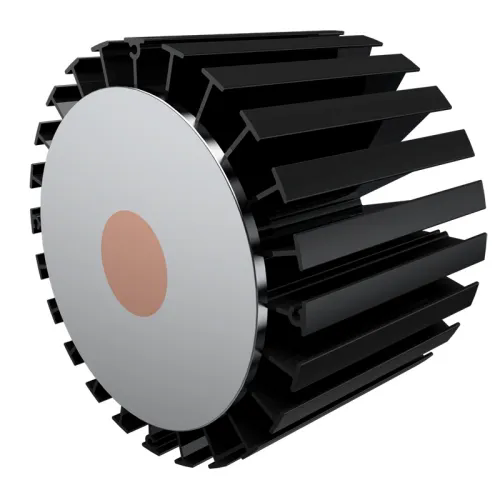

Advanced Construction and Thermal Performance Specifications Featuring a copper and aluminum composite base plate, the 70W ZT Series LED Heat Sink leverages phase change heat transfer technology to achieve a thermal resistance of 0.7560°C/W at 50W test power. Its overall dimensions of Ф120 × 84 mm and a base plate measuring Ф30 (Cu) × 3 mm with 96 (Al) × 4 mm provide optimized surface area for heat conduction. Weighing only 0.55 kg, its lightweight design facilitates installation without compromising cooling efficiency. This precise engineering enables continuous operation under high thermal loads, meeting rigorous performance requirements expected in advanced LED lighting systems.
Industry-Relevant Applications and Operational Benefits This heat sink caters to a broad scope of LED applications, including retrofit installations, OEM product development, and upgrades of existing LED lighting fixtures. Its stable thermal resistance and compact form factor enable enhanced reliability in outdoor and industrial LED lighting systems where thermal stresses affect device lifespan. The 70W ZT Series LED Heat Sink supports thermal stability testing protocols and serves as a critical component for ensuring compliance with LED product performance standards. The solution is instrumental in elevating system longevity, reducing downtime, and optimizing maintenance cycles across various sectors.
Product Advantages
Robust Design and Engineering Integration The 70W ZT Series LED Heat Sink incorporates a sophisticated base plate combining copper and aluminum materials, optimizing heat conduction pathways in a compact mechanical footprint. Its phase change heat transfer mechanism enhances thermal conductivity beyond conventional passive heat sinks. The design accommodates a range of LED module sizes and shapes, enabling modular integration into complex assemblies. This structural adaptability allows manufacturers to customize and scale thermal management solutions effectively. Moreover, the lightweight design reduces mechanical strain on LED fixtures, facilitating easier assembly and installation within constrained spaces.
Reliable Performance and Operational Efficiency From a performance perspective, the 70W ZT Series LED Heat Sink ensures consistently low thermal resistance, enabling LED devices to operate within safe temperature margins, thus extending operational lifespans. Its efficient cooling reduces the risk of premature LED failure and maintains luminous efficiency over time. The heat sink’s stable thermal behavior at 50W load supports continuous duty cycles typical in industrial and commercial lighting. For engineers and procurement managers, this translates into heightened system reliability and lower total cost of ownership. The OEM customization offering allows tailored solutions to meet specific thermal demands, enhancing usability and integration within varied product lines.
Use Scenarios
Optimizing Thermal Management in High-Power LED Assemblies Within the industrial LED manufacturing sector, the 70W ZT Series LED Heat Sink plays a critical role managing heat dissipation in compact high-power LED modules. The operating environment often demands rigorous thermal control to prevent LED degradation and ensure system stability. By employing phase change heat transfer technology combined with a copper-aluminum composite base, this heat sink delivers superior heat removal efficiency. It complies with strict thermal performance standards and integrates directly into assembly lines, supporting scalable production workflows and quality assurance processes that are essential for volume manufacturers.
Enhancing Reliability in Outdoor LED Lighting Systems In outdoor commercial lighting installations, the 70W ZT Series LED Heat Sink contributes to maintaining device longevity amid fluctuating environmental conditions. LED fixtures deployed in such contexts require robust thermal management to counteract heat build-up from continuous operation and ambient temperature variations. This heat sink’s stable thermal resistance and efficient conduction facilitate sustained cooling performance, reducing maintenance frequency and operational downtime. Its compact form factor allows incorporation into retrofit and new-build fixture designs. Integrated thermal management improves compliance with industry standards while supporting lighting performance and energy efficiency objectives.
FAQ
What materials are used in the 70W ZT Series LED Heat Sink? The 70W ZT Series LED Heat Sink combines a copper base plate and aluminum fins to optimize heat conduction. The copper core enhances thermal transfer efficiency, while aluminum provides lightweight durability, ensuring effective cooling for high-power LED lighting applications.
Is OEM customization available for the 70W ZT Series LED Heat Sink? Yes, OEM customization is supported for the 70W ZT Series LED Heat Sink. Jiashan Haoye Electronic Technology offers tailored design and production services to meet specific client requirements in LED thermal management, enabling integration into various LED system configurations.
What installation considerations apply to this LED heat sink? This compact LED heat sink weighs only 0.55 kg and features precise dimensions (Ф120 × 84 mm), facilitating installation in limited spaces commonly found in LED lighting fixtures. Its design supports continuous operation, ensuring stable thermal resistance and long-lasting LED performance.
Where is the product shipped from, and what is the minimum order quantity? The 70W ZT Series LED Heat Sink is manufactured and shipped from Jiaxing City, Zhejiang Province, China. Samples are available for evaluation, and the minimum order quantity for standard production runs is 100 pieces to support efficient manufacturing and logistics.
