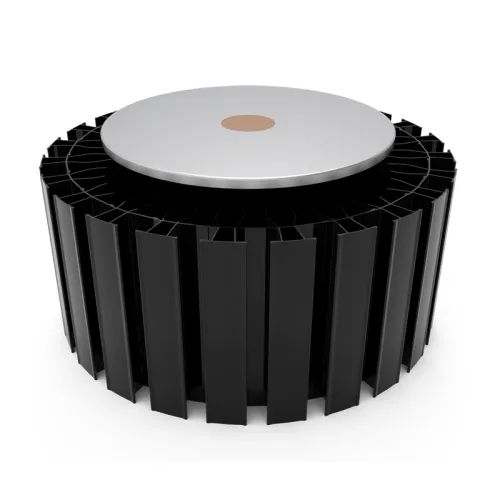

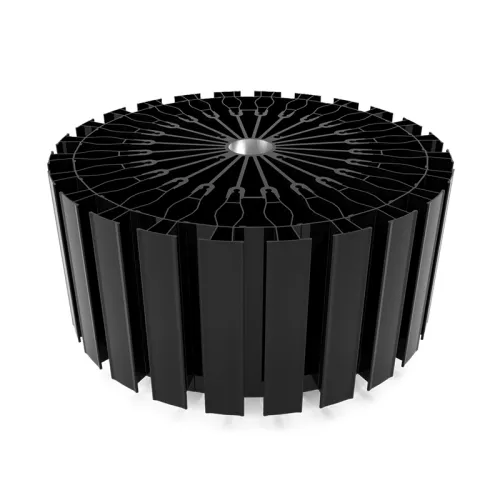

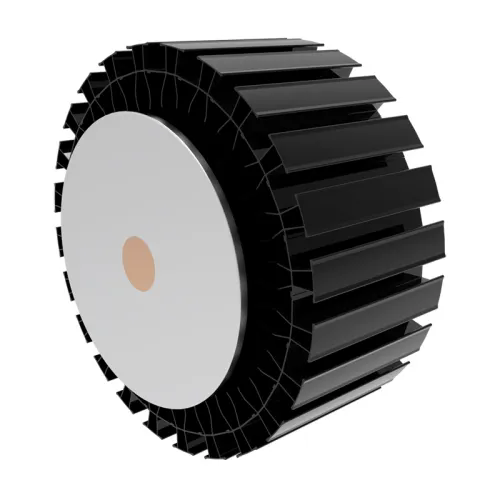

180W SE Series LED Heat Sink
No.SE-D225H110-160
Model:SE-D225H110-160
Cooling Principle: Phase Change Heat Transfer
Thermal Resistance (Rth):0.3260°C/W(test power:150W)
Overall Size:φ226*115mm
Base Plate:Ф30(Cu)*3+160(Al)*5mm
Weight:2.23kg
型号:SE-D225H110-160
散热原理:铜相变热柱
热阻 (Rth):0.3260°C/W(test power:150W)
尺寸:φ226*115mm
底板尺寸:Ф30(Cu)*3+160(Al)*5mm
重量:2.23kg
