Home > All Collections > Thermal Modules / Heat Sink > Heat Column Heat Sink > 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W

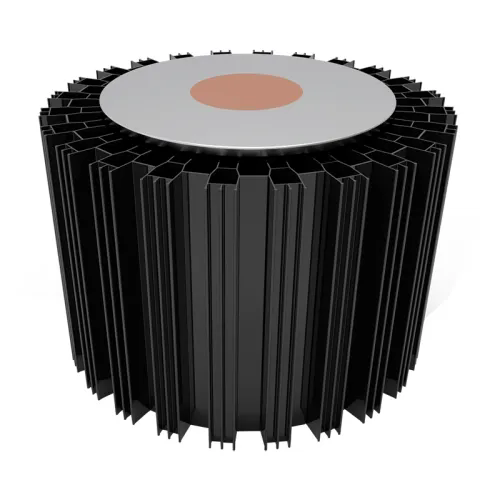

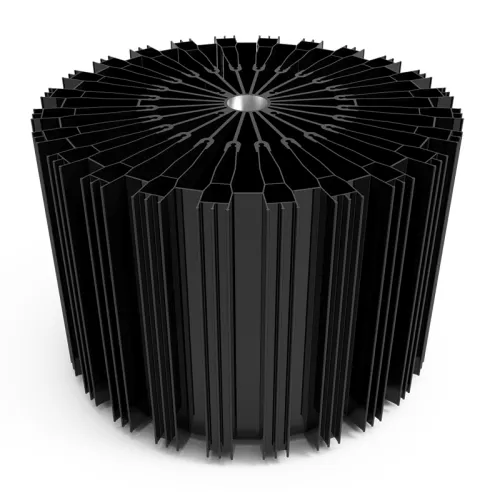

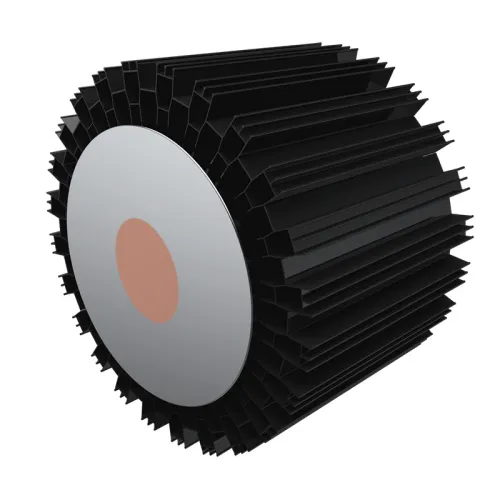

300W RSH Series LED Heat Sink300W

No.RSH-D265H180
Model:RSH-D265H180
Cooling Principle:Phase Change Heat Transfer
Thermal Resistance (Rth):0.1830°C/W(test power:200W)
Overall Size:Ф265*185mm
Base Plate:Ф60(Cu)*3+170(Al)*5mm
Weight:3.85kg
Get The Latest Quote
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W
  • 300W RSH Series LED Heat Sink300W

Description
