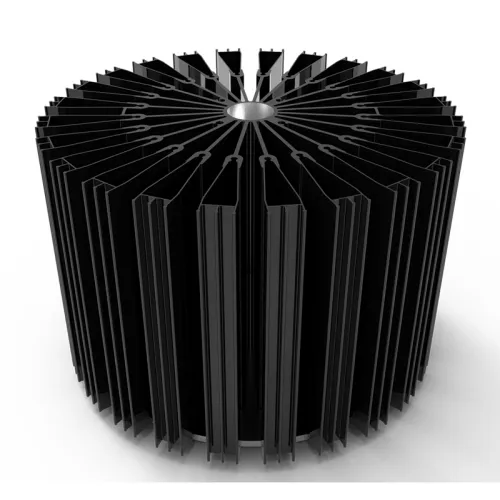

Targeted Thermal Solution for High-Power LED Systems The 220W RSH Series LED Heat Sink addresses the demanding cooling needs of industrial and commercial LED lighting systems that operate at high power levels up to 220W. Designed specifically for engineering professionals, system integrators, and procurement specialists, this heat sink provides reliable thermal management critical to LED performance and lifespan. Its construction supports compatibility with a variety of high-intensity LED modules, enabling efficient passive heat transfer in environments such as street lighting, architectural fixtures, and large-scale industrial luminaires. By offering a robust and application-focused solution, the 220W RSH Series LED Heat Sink assists designers in maintaining system stability and reducing maintenance costs.
Advanced Thermal Engineering and Measurable Performance Metrics Incorporating an innovative phase change heat transfer cooling principle, the 220W RSH Series LED Heat Sink achieves a low thermal resistance of 0.2333°C/W when tested at 150W, reflecting superior heat dissipation capacity. Its hybrid copper and aluminum construction enhances thermal conductivity, with a substantial base plate dimension optimized for heat spreading across the device surface. Weighing 2.80kg, the unit combines material density and structural integrity to stabilize temperature fluctuations during continuous operation. The dimensional footprint of Ф225 x 155 mm accommodates significant heat loads, ensuring predictable thermal performance that meets stringent engineering and compliance standards for high-power LED applications.
Broad Industrial Applications Enhancing LED System Reliability The 220W RSH Series LED Heat Sink is well suited for incorporation within various sectors requiring stringent thermal management solutions, including outdoor street lighting, industrial floodlights, and indoor horticultural LED modules. Its effective phase change cooling mechanism extends LED product lifetimes and safeguards against temperature-induced performance degradation. Integrated within LED retrofit projects and large commercial lighting arrays, it supports system designers aiming for optimized energy efficiency and operational reliability. This heat sink’s capabilities in dissipating substantial heat loads enable LED lighting solutions to comply with industrial thermal management protocols and improve overall system return on investment.
Product Advantages

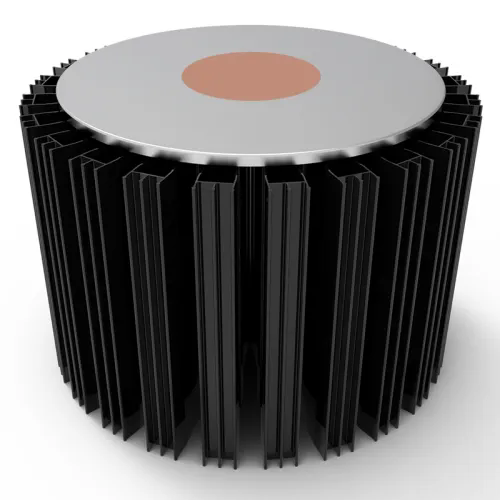

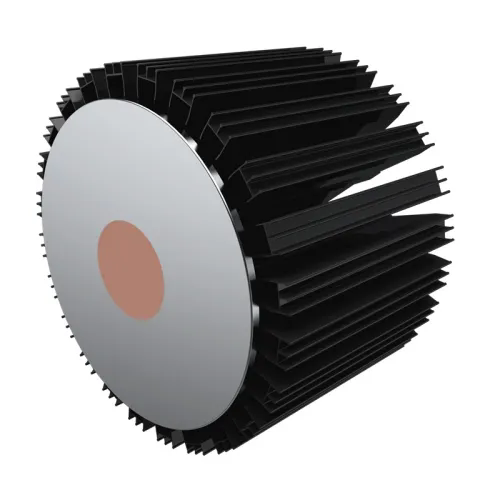

Robust Structural Design Optimized for Heat Transfer Efficiency The 220W RSH Series LED Heat Sink features a composite structure combining high thermal conductivity copper with lightweight aluminum, maximizing heat absorption and distribution. Its design includes a wide base plate that efficiently transfers thermal energy away from LED modules while maintaining structural stability at 2.80kg. The heat sink’s phase change cooling element significantly enhances system heat transfer beyond conventional passive cooling technologies. This modular and integrable design allows for straightforward adaptation into existing LED fixtures, supporting engineering efforts demanding consistent and reliable thermal performance in complex lighting installations.
Enhanced Performance Delivering Reliable Thermal Management and Longevity Characterized by a low thermal resistance rating of 0.2333°C/W, the 220W RSH Series LED Heat Sink enables superior temperature control, which directly contributes to prolonged LED operational life and stable luminous efficacy. Its phase change cooling principle improves heat dissipation efficiency, reducing the risk of thermal stress-related failures. The heat sink’s weight and construction provide durability within industrial environments while facilitating straightforward installation and integration. This combination of high performance and practical usability offers end users valuable maintenance cost reduction and system uptime improvements, ultimately supporting sustainable LED lighting deployments.
Use Scenarios
Thermal Management in Outdoor LED Street Lighting Installations In outdoor municipal and highway lighting infrastructures, the 220W RSH Series LED Heat Sink plays a critical role in thermal dissipation for high-power LED fixtures exposed to variable environmental conditions. Its phase change cooling mechanism ensures consistent temperature regulation despite fluctuating ambient temperatures, maintaining LED efficiency and preventing premature component failure. The heat sink’s copper-aluminum composite base plate distributes heat effectively, complying with strict energy and safety regulations. Integration into pole-mounted and retrofit luminaires facilitates efficient system upgrades and extends asset lifecycles while supporting public lighting reliability and energy management workflows.
Heat Dissipation Solution for Indoor Horticultural LED Systems Within controlled environment agriculture, such as indoor horticulture, maintaining optimal thermal conditions is essential for LED grow lights to ensure crop yield consistency. The 220W RSH Series LED Heat Sink efficiently removes excess heat generated by high-intensity LED modules, using its phase change cooling technology to stabilize operational temperatures. Its robust construction minimizes thermal stress on electronic components, enhancing overall system resilience. By integrating this heat sink, horticultural lighting system engineers achieve compliance with environmental control standards and improve energy efficiency, supporting crop-specific illumination strategies and extending fixture service life under continuous operation scenarios.
FAQ
What materials are used in the 220W RSH Series LED Heat Sink? The 220W RSH Series LED Heat Sink combines copper and aluminum in its base plate to maximize thermal conductivity and structural strength. Copper enhances heat transfer, while aluminum provides lightweight durability, ensuring efficient cooling for high-power LED applications.
Is OEM customization offered for the 220W RSH Series LED Heat Sink? Yes, Jiashan Haoye supports OEM services for the 220W RSH Series LED Heat Sink, including design modifications and tailored specifications to fit specific project requirements or integration needs within your LED lighting systems.
How should the 220W RSH Series LED Heat Sink be installed for optimal performance? Proper installation of the 220W RSH Series LED Heat Sink requires secure mounting on flat surfaces to ensure full contact with the LED module. Maintaining clean contact and applying appropriate thermal interface materials will optimize heat dissipation and prolong LED lifespan.
What are the typical lead times for ordering the 220W RSH Series LED Heat Sink? Delivery times for the 220W RSH Series LED Heat Sink depend on order volume and destination. Jiashan Haoye recommends contacting their sales team directly to obtain accurate lead time estimates and coordinate logistics effectively.
