Optimized Thermal Management for High-Power Lighting Systems

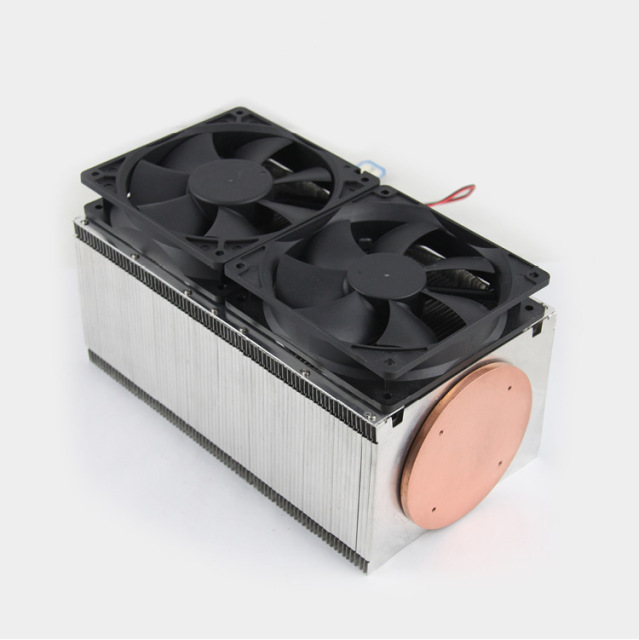

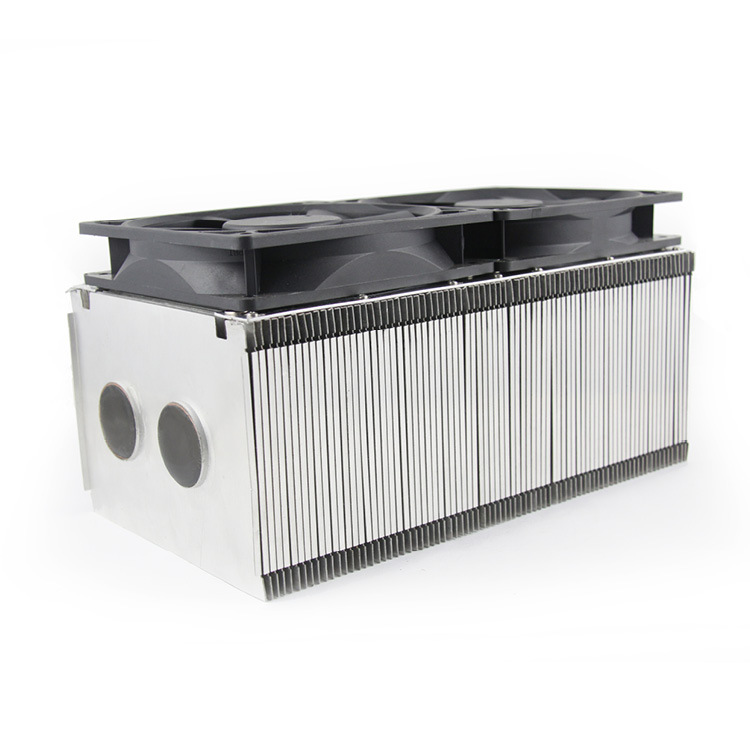

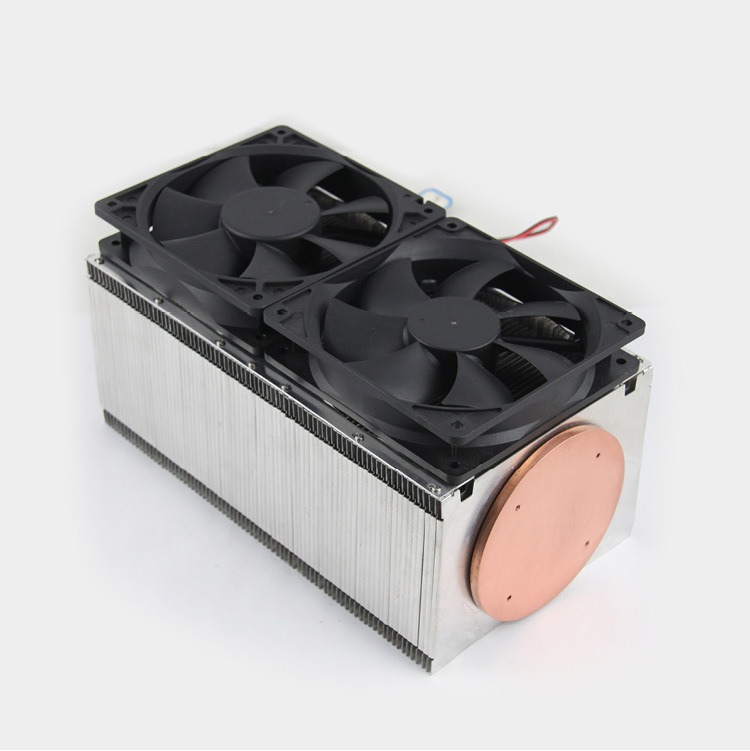

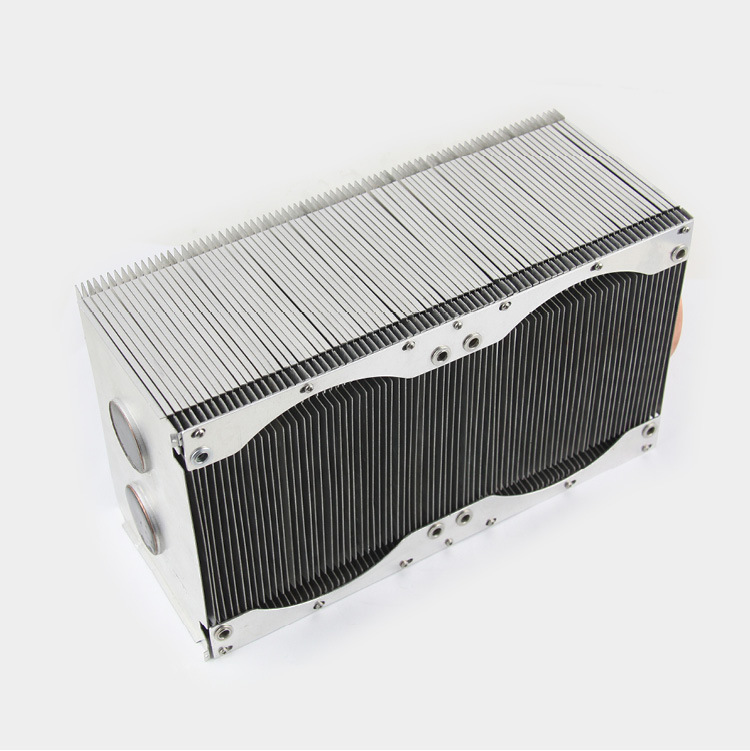

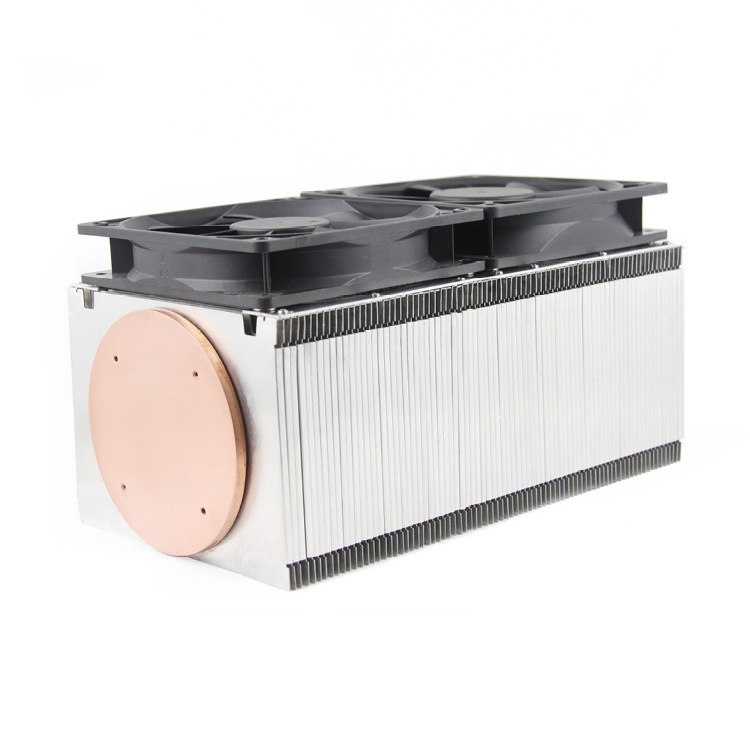

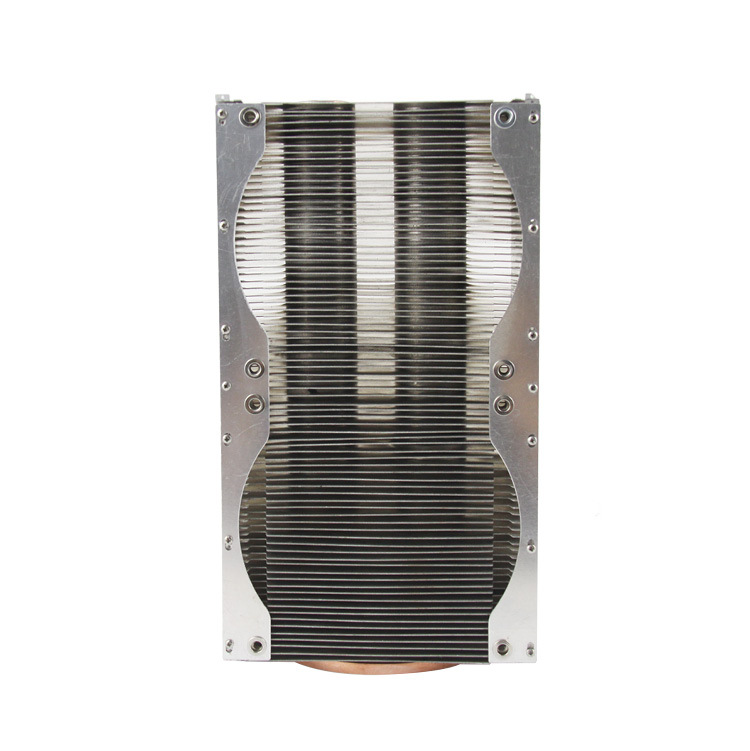

The Hengjie Stadium Light Heat Sink – Extruded Aluminum Heat Sink for High Power Cooling is designed to meet the rigorous demands of high wattage stadium lighting applications. Targeted primarily at engineers and system integrators, this heat sink ensures effective thermal regulation in large-scale lighting installations. Its architecture supports maintaining system stability under continuous high thermal loads, addressing critical performance requirements in sports arenas and outdoor event venues. By reducing the risk of thermal failure, it serves as a reliable component that contributes to operational continuity in demanding environments.
Advanced Material Composition and Technical Specifications
Incorporating premium extruded aluminum and sintered copper heat columns, the Hengjie Stadium Light Heat Sink maximizes heat transfer efficiency. The design integrates a double heat column press-fitted fin assembly that facilitates high-performance phase change heat transfer, complemented by a fin cooler structure engineered to optimize airflow. With a model size of 135 x 100 x 250 mm and power handling between 1200 to 1500 watts, the unit is compatible with active cooling setups using fans. These measurable specifications ensure that the heat sink delivers consistent performance under elevated thermal conditions prevalent in stadium lighting.
Application in Stadium and Industrial Lighting Environments
This extruded aluminum heat sink supports thermal management across various types of high-intensity LED stadium lighting and outdoor sports lighting fixtures. It also addresses heat dissipation challenges in industrial-scale lighting arrays, including video and laser lighting applications requiring durable and efficient thermal control. Integration capability with existing cooling systems enhances overall energy efficiency and equipment longevity. By mitigating overheating risks, the Hengjie Stadium Light Heat Sink contributes to improved maintenance cycles and decreased operational downtimes in critical lighting infrastructure.
Product Advantages
Structural and Modular Design Enhancements
The Hengjie Stadium Light Heat Sink features a modular design that allows seamless integration into complex stadium lighting systems. The double heat column press-fitted fin assembly enhances structural robustness, ensuring stable mechanical connections and optimized thermal paths. Use of extruded aluminum combined with sintered copper heat columns leverages material conductivity properties, addressing both durability and thermal efficiency. This system-oriented architecture facilitates customization to fit varied installation requirements, supporting diverse LED module configurations and cooling system designs.
Performance Reliability and Operational Efficiency
Engineered for continuous high-power operation, the Hengjie Stadium Light Heat Sink sustains efficient heat dissipation, reducing the likelihood of thermal-induced failures. Its compatibility with fan-assisted active cooling systems enhances usability within high-demand settings. The optimized airflow design reduces energy consumption by maintaining lower device operating temperatures, thus extending the service life of lighting components. For procurement and engineering teams, this solution aligns with performance stability and ROI objectives through minimized maintenance and enhanced system reliability.
High-power finned Air cooling with Fan Heat Sink

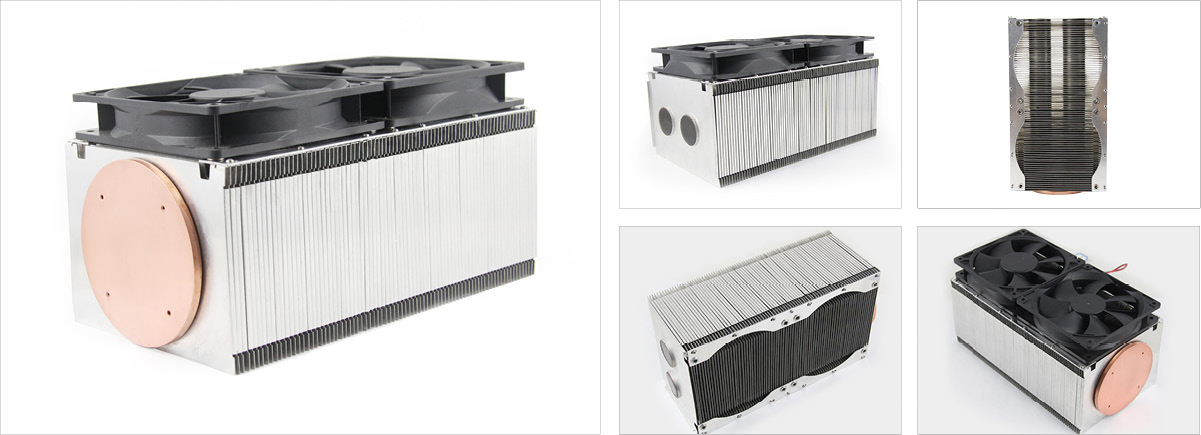

Display

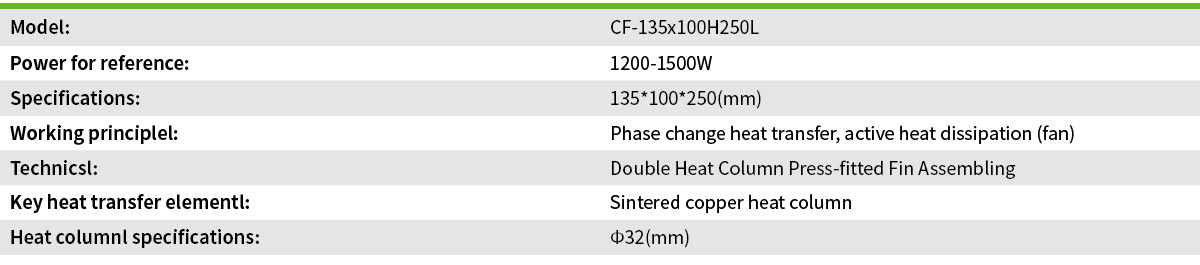

Detailed Specification
Dimension In Drawing
Application
It's suitable for Light(laser light, video light, studio light,etc.), Device (lGBT,inverter, cooling chip, etc), Consumerelectronics(computer,data center)
Use Scenarios
Thermal Management in High-Power Stadium Lighting InstallationsWithin stadium facility management, the Hengjie Stadium Light Heat Sink plays a critical role in managing heat generated by continuous high-lumen output LED lighting fixtures. The outdoor environment subjects lighting assemblies to fluctuating temperatures and harsh conditions; therefore, durable materials and efficient heat transfer mechanisms are essential. This heat sink improves compliance with operational thermal limits and integrates with fan-based active cooling systems to maintain stable lighting performance throughout extended event durations. Its deployment supports system designers in meeting stringent thermal safety and energy efficiency standards.Integration in Industrial-Scale LED Video and Laser Lighting ArraysIn complex stage and broadcast lighting setups, such as those employing high-intensity video and laser units, thermal control is paramount to preventing system degradation. The Hengjie Stadium Light Heat Sink – Extruded Aluminum Heat Sink for High Power Cooling provides reliable heat dissipation that maintains optimal device temperatures under variable load conditions. Its modular format enables straightforward integration within existing cooling infrastructures, supporting operational continuity and minimizing downtime. Technical teams benefit from this solution’s compliance with industrial safety protocols and its adaptability to evolving lighting technology requirements.
FAQ What materials are used in the Hengjie Stadium Light Heat Sink construction?The Hengjie Stadium Light Heat Sink combines extruded aluminum with a sintered copper heat column to ensure superior thermal conductivity and durability. This combination effectively manages high thermal loads in stadium lighting setups, enhancing overall cooling performance and system reliability.Can the Hengjie Stadium Light Heat Sink be customized for specific lighting systems?Yes, the Hengjie Stadium Light Heat Sink features a modular design allowing flexible sizing and configurations to fit various stadium lighting arrangements. Customization options help integrate the heat sink efficiently into existing or new high-power lighting systems for optimal heat dissipation.How is the Hengjie Stadium Light Heat Sink installed with fan-assisted cooling systems?This heat sink is engineered to work seamlessly with active cooling systems using fans. By maximizing airflow through its fin cooler structure and copper heat columns, the Hengjie Stadium Light Heat Sink enhances heat dissipation when combined with fan-assisted setups, maintaining stable operating temperatures.What logistics and support services does Jiashan Haoye provide for this heat sink product?Jiashan Haoye offers comprehensive OEM and ODM services, ensuring tailored production and global shipping of the Hengjie Stadium Light Heat Sink. Customers benefit from professional design support and reliable manufacturing to meet industrial cooling requirements and delivery schedules.
