Name: Hengjie Heat Sink Suppliers – Copper Heat Sink with Heat Pipe Cooling for Photography Light
Brand: Heatsink,Heat pipe,LED heatsink,CPU heatsink,IGBT heatsink,Air cooling
SKU: CF-120x70H135
Availability: InStock
Rating: 5 (1 reviews)

Description

JIASHAN HAOYE ELECTRONIC TECHNOLOGY CO.,LTD.

CF Series Photography Light Heat Sink

Advanced Thermal Management Solution for Photographers and Manufacturers
The Hengjie Heat Sink Suppliers provide a Copper Heat Sink with Heat Pipe Cooling for Photography Light engineered to meet the thermal management requirements of professional photographers, equipment manufacturers, and system integrators. This product is specifically designed to address the high heat generation characteristic of intense lighting systems used in studio and field photography. By integrating a high-conductivity copper base with advanced heat pipe technology, it enables stable light intensity and prevents thermal degradation during extended operation periods. This solution targets users who require reliable, maintenance-free cooling to optimize lighting performance and operational uptime.

Innovative Heat Pipe Integration with Precise Material Engineering
Constructed using premium-grade copper, this heat sink incorporates a phase-change heat pipe system that significantly improves heat transfer efficiency. The patented single heat column press-fitted fin assembly and sintered copper heat column, with a diameter of Φ40 mm, facilitate rapid and uniform dispersion of thermal energy. Measuring 120 × 70 × 135 mm, the heat sink supports power ranges from 355 to 605W, relevant for high-power photography lights. The passive cooling mechanism eliminates the need for active cooling components, reducing risk of mechanical failure while maintaining consistent operating temperatures essential for electronic component longevity.

Versatile Application Across Lighting and Imaging Industries
The product from Hengjie Heat Sink Suppliers is widely applicable in sectors requiring superior thermal regulation, including studio photography, videography, stage lighting, and laser illumination systems. Its robust design ensures reliable performance for continuous or intermittent high-intensity lighting setups, contributing to equipment safety and efficiency. The heat sink’s natural cooling properties comply with industry standards for passive thermal management, enabling seamless integration within complex lighting assemblies. This enhances operational reliability and supports cost-effective maintenance cycles, providing value to OEM and ODM partners engaged in professional and commercial lighting product development.

Display

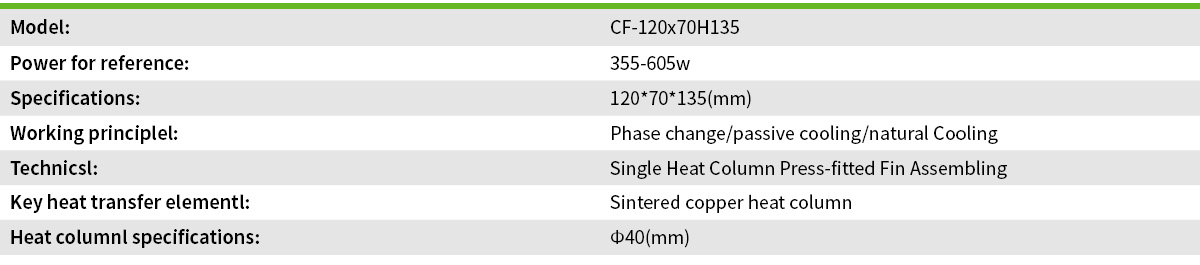

Detailed Specification

Product Advantages

Structural Innovation and Modular Design Benefits
The Hengjie Copper Heat Sink with Heat Pipe Cooling features a modular design optimized for integration into diverse lighting systems. Its construction includes the patented Ultra HEAT PIPE heat column that leverages phase-change principles to maximize heat transfer capacity. The single heat column press-fitted fin assembly reduces assembly complexity and enhances structural integrity. Copper material selection offers superior thermal conductivity compared to alternative materials, enabling efficient heat absorption and rapid dissipation. This innovative design approach from Hengjie Heat Sink Suppliers facilitates customization and scalability, meeting varied specification requirements from different lighting equipment manufacturers.

Enhanced Performance and Reliability for End Users
By combining passive cooling with advanced copper heat pipe technology, the product ensures stable operating temperatures even under prolonged, high-power illumination conditions. This minimizes the potential for overheating-related failures and extends the service life of sensitive lighting components. User value is further realized through reduced need for active cooling devices, lowering noise levels and maintenance demands. Hengjie Heat Sink Suppliers offer this Copper Heat Sink with Heat Pipe Cooling for Photography Light as a dependable thermal solution supporting consistent lighting performance, contributing to increased ROI through enhanced equipment durability and reduced downtime.

Dimension In Drawing

Application

Lighting fixtures (photography lights, stage lights, laser lights, video lights, etc.).

Use Scenarios

Thermal Management in Professional Photography Lighting
In the professional photography sector, continuous high-intensity lighting generates substantial heat that can compromise equipment functionality and image quality. Hengjie Heat Sink Suppliers’ Copper Heat Sink with Heat Pipe Cooling effectively absorbs and dissipates this heat, ensuring stable device temperatures critical for maintaining consistent light output. This passive cooling solution integrates seamlessly with photography light fixtures, supporting extended shooting sessions without performance degradation. Its phase-change heat pipe technology complies with industry thermal management standards, allowing manufacturers and photographers to meet operational requirements while optimizing system reliability and workflow efficiency.

Integration in Stage and Video Lighting Systems
Stage and video lighting environments demand highly reliable thermal management due to intensive operational durations and varying ambient conditions. The Copper Heat Sink with Heat Pipe Cooling provided by Hengjie Heat Sink Suppliers serves as a crucial component in managing the thermal load of LED and laser fixtures. Its high-conductivity copper construction and patented sintered heat column enable rapid heat dissipation, reducing the risk of overheating that could disrupt live productions. This solution is easily integrated into existing lighting assemblies, ensuring compliance with performance specifications and facilitating maintenance by production engineers responsible for reliable, uninterrupted operation during complex staging and broadcasting workflows.

FAQ

How does Hengjie’s copper heat sink with heat pipe cooling enhance thermal management for photography lights?
The Hengjie Heat Sink Suppliers – Copper Heat Sink with Heat Pipe Cooling for Photography Light integrates high-conductivity copper and phase-change heat pipe technology, rapidly transferring heat away from lighting components. This passive system maintains stable operation and prevents overheating during prolonged photography sessions.

Can Hengjie customize the copper heat sink dimensions for different photography lighting fixtures?
Yes, Hengjie offers tailored production of their copper heat sink with heat pipe cooling to fit various lighting designs. Custom dimensions ensure optimal thermal performance suited to your specific photography light setup, supporting reliable and stable equipment function.

What installation considerations should be observed for Hengjie’s copper heat sink with heat pipe cooling?
The copper heat sink with heat pipe cooling uses a natural passive cooling design requiring proper contact with the heat source. Ensure secure mounting and unobstructed airflow around the heat pipe for efficient heat dissipation and maximum longevity of your photography lighting equipment.

What is the typical delivery timeframe for custom orders from Hengjie Heat Sink Suppliers?
Custom orders from Hengjie typically have a lead time of 2 to 4 weeks, depending on complexity. As a reputable Hengjie Heat Sink Supplier – Copper Heat Sink with Heat Pipe Cooling for Photography Light, they prioritize quality and precision over speed to ensure product reliability.
